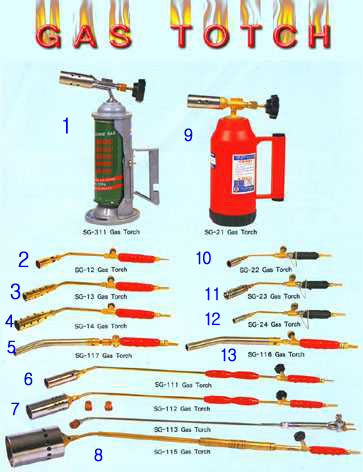

SG TYPE GAS TORCH |
|
 |
| SAM WOO Gas Torch is easy to regulate and to carry and its fire is very stable and it is possible to use in any direction. it is so perfectly designed that it is safe and can be used for various heating work. |
|
 |
|
MODEL NO |
used fuel |
nozzle spec. |
total length |
charater |
1 |
SG - 311 |
butane gas |
0.4mm |
280mm |
for heating |
2 |
SG - 12 |
L.P.G |
0.6mm |
470mm |
for heating |
3 |
SG - 13 |
L.P.G |
0.9mm |
500mm |
for heating |
4 |
SG - 14 |
L.P.G |
1.1mm |
520mm |
for heating |
6 |
SG - 111 |
L.P.G |
1.8mm |
1160mm |
for heating |
7 |
SG - 112 |
L.P.G |
2.0mm |
1130mm |
for heating |
8 |
SG - 115 |
L.P.G |
2.3mm |
1210mm |
for heating |
9 |
SG - 21 |
butane gas |
0.4mm |
250mm |
for heating |
10 |
SG - 22 |
L.P.G |
0.4mm |
380mm |
for heating |
11 |
SG - 23 |
L.P.G |
0.7mm |
420mm |
for heating |
12 |
SG - 24 |
L.P.G |
0.4mm |
390mm |
for melting |
13 |
SG - 116 |
L.P.G |
0.4mm |
555mm |
welding for a cooper pipe |
|
|
|
|
|
209-11 JANGDONG DAELSEO-GU TAEGU KOREA
TEL : 82-53-581-7781~6
FAX : 82-53-583-2188 |
|
1. Lighting ( SG-12,13,14,22,23,24,111,112,115 )
1) After connecting an industrial pressure adjuster into the L.P.G container
and connect the industrial pressure adjuster into the torch with a high
pressure hose.
2) Unfasten the container valve and light it turning the adjusting handle
counter clockwise slowly.
3) Regulate fire strength with the adjusting handle.
2. Lighting ( SG-21,311 )
1) Make sure that butane gas container is connected to the torch.
2) Light it turning the gas torch handle counter clockwise.
3) Regulate fire condition with the adjusting handle.
3. Extinguishing
1) After using, fasten the container valve when the fire extinguishes
fasten the adjusting handle.
2) Do not touch it until it gets cool.
4. Caution ( SG- 12,13,14,22,23,24,111,112,115 )
1) Use L.P.G as fuel.
2) Make sure fastening of the connecting part.
3) Keep a 2m distance between the gas torch and the container.
4) Keep the temperature of the container below 40 degrees.
5) Do not take apart the gas torch.
|
|
|
|
|
|
