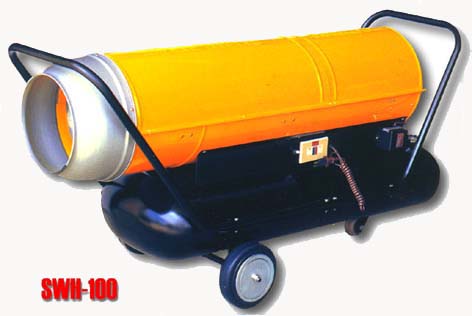

DEWJHON Hot Fan |
|
 |
| The burner is stable and the structure simple, the fan protect it from overheating, so that there is few breakdown. Combustion is very stable , quick to make heating and durable. Automatic security equipment makes oil stop in case of blackout and when the electricity flows, it works again as usual. Using lamp oil, make efficiency. It is so easy to carry it as to suit sectional heating. |
|
|

|
209-11 JANGDONG DAELSEO-GU TAEGU KOREA TEL : 82-53-581-7781~6 FAX : 82-53-583-2188 |
|
Dew jhon Hot Fan manual
1. Starting
1) Make sure that the fueling cord is open ant that oil does not lick.
2) Make sure electricity can flow through the switch box and that there is
no faults on the cord.
3) Make sure that the voltage of the burner and that of the outlet is same
and that the cord is all right.
4) Before turn the power switch on, make sure all the other switches are
off.
5) Turn the lighting switch off 10 minutes after the blowing switch is off.
6) If it does not light , remove all the air in the electric pump.
2. Stopping
1) After turning the power switch off , race the motor of the burner and
the blower. (Otherwise it can cause breakdown.)
2) After the combustion room gets completely cool, turn it off.
3) Turn the blower off , pull the plug off.
3. Caution
1) Use only 220v 60 HZ, do not use too long a cord .
2) Use white lamp oil and always fill the fuel tank.
3) Do not let water get in the tank, and clean it up once a month.
4) Do not use it on the inflammables
5) If using it inside, install the vent to admit and circulate fresh air.
6) If using it outside, protect it from snow, rain and dampness.
Do not store it in the place below freezing.
7) Operate it according to the manual.
8) If finding any problem with it, call the shop you bought and
have it repaired there.
|
|
|
|
|
|
