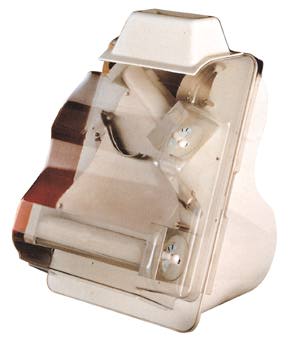

PIZZA ROLLER
Inquiry    Recommend



Considering security, hygiene, efficiency, low noise, Sam Woo Pizza Roller is absolutely differentiated from the existing items. Just inserting knead makes pizza, which is only possible by high technology.



Model NO.

SPR - 1000

Dimension(W x L x H)

500 x 470 x 620mm

Motor

1 Hp

Weight

30kg






209-11 JANGDONG DAELSEO-GU TAE GU KOREA
TEL : 82-53-581-7781~6
FAX : 82-53-583-2188

Pizza Roller manual and technology

1. Installing
	1) Install the machine on the even and stable place.
	2) Make sure the bolts are screwed tightly on both the knead guide and the
	   protecting guide.
	3) Make sure that the outlet is of the same power as that of the machine. (
	   Grounding is necessary )
2. Manual
* The machine pushes and shapes the pizza knead , so that the adjusting of the
upper roller and lower roller is necessary according to the condition of the knead.
For example , in case of the model SPR -1000 , if the weight of the knead is
130-180 g , set up 2.5 on the upper roller thickness adjuster , and 1.5. the lower
one. If the weight is less than that, set up smaller number on the each roller , if
more than that , set up larger number.
	1) Put some flour on the hands, the knead and the table and make
	   15-20mm thick round knead.
	2) Turn it on, insert the knead the opening.
	3) Within 4 minutes there comes the knead out of the lower roller.
 * Without touching the guide, the shapes is made.
	4) If the thickness or diameter is not suitable. Use the thickness
	  adjuster . In any case you should use it in the range in the manual.
3. Caution
	1) To maintain the best condition of the machine brush off the
           remaining on the roller regularly.
	2) No need to fuel the machine.
	3) According to the condition of knead , use the upper or lower
           roller adjusters.
	4) The reason why the knead is not round.
		a. Distance between the upper roller and the lower one is not fixed
                correctly.
		b. The shape of the knead is not round when inserted the knead.
		c. The knead does not come out through the knead guide.
