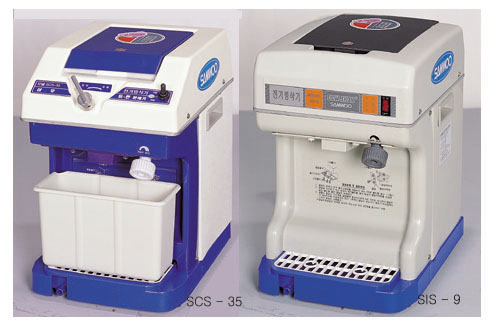

ICE SLICER AND CRUSHER |
|
 |
| The ice slicer and crusher are designed with a smart appearance and convenient structure. Since the required volume of cocktail ice are input in making red bean sherbet, it is very sanitary and economical. When its lid is open in operating it, it stops automatically. Therefore |
|
 |
Model NO. |
SIS - 9 |
SCS - 35 |
SHF - 350 |
Dimension(W x L x H) |
285 x 370 x 425mm |
285 x 370 x 425mm |
440 x 250 x 590mm |
Power Consumption |
210W |
230/220W |
230/220W |
Rated Current |
3A |
5.3/4.3A |
5.3/4.3A |
Voltage |
AC 220V |
AC 220V |
AC 220V |
Weight |
21kg |
21kg |
31kg |
Crushimg Rate |
1.5/1.8kg/Min |
1.5/1.8kg/Min |
--- |
Ice Input |
1kg |
1kg |
--- |
|
|
|
|
|
|
209-11, Jang-dong, Dalseo-gu, Taegu, Korea
TEL. 82-53-581-7781~6
FAX. 82-53-583-2188 |
|
| ICE SLICER
1.THE METHOD OF USE
1)Drop ice cube into the inlet and close the lid.
2)Turn on the power switch on the right side.
3)Select the size of ice slice with a blade adjustable handle.
2.CAUTION !!
1)Make sure closing the lid before start.
2)Insert ice cube only when the ice slicer completely stops.
3)Fill ice cube up to 1cm below the red cover inside the lid.
4)Arrange ice cube evenly without leaning.
(If not, the ice slicer will vibrate.)
5)Ice slicer stops when the lid opens.
6)When the ice slicer is overloaded, its fuse of the back blows out and it stops.
(See the fuse and replace it with a new one.)
|
|
|
|
|
|
