SOY MILK MACHINE |
|
 |

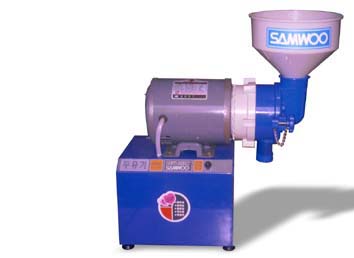

| SAM WOO soy milk machine is made of pc and acetylene which fits to food machine and looks smart hygienic and easy to clean. especially the main body cover has the adjusting handle which adjusts what size the food is grinded and the millstone can be changed according to its usage. |
|
 |
Model NO. |
SD - 100 |
SD - 200 |
SD - 300 |
Dimension(W x L x H) |
400 x 250 x 560mm |
540 x 290 x 620mm |
620 x 330 x 670mm |
Power Consumption |
580W |
750W |
1050W |
Power Supply |
AC 220V |
AC 220V |
AC 220V |
Weight |
21kg |
32kg |
46kg |
Motor supply |
1/2Hp |
1.5Hp |
3Hp |
|
|
|
|
209-11 JANGDONG DAELSEO-GU TAEGU KOREA
TEL : 82-53-581-7781~6
FAX : 82-53-583-2188 |
|
1. Manual
1) Close the front cover and fasten the fixing lever.
2) Thurn it on.
3) Adjust what size the food is fit with an adjusting handle.
2. Technology
1) Use Roughly and finely according to the sign on the motor.
2) If the millstone is worn out, change it into new one.
3) If the stone is broken, replace it with new one.
4) Earth it when using it.
5) Don't operate it without putting the materials.
( it may cause the stone wear)
3. Caution
1) Put it on the place when children can not touch.
2) Don't put hand into the opening
3) Clear up the remaining beans after using it.
( The remaining beans may be rotten cause uncleanliness.
4) Turn it on after closing the front cover and fastening the fixing lever.
5) Be careful for water not to be in the motor.
( otherwise it cause electric lick )
|
|
|
|
|
|
